Ceiling grid quality inspection standards are essential for ensuring that Suspended Ceiling Systems perform reliably, look professional, and meet project expectations. Whether used in commercial offices, healthcare facilities, retail spaces, educational buildings, or industrial environments, a ceiling grid must be evaluated for structural integrity, dimensional accuracy, surface finish, load-bearing capability, and installation consistency. A well-inspected Ceiling Grid System supports ceiling tiles, helps maintain a uniform appearance, and contributes to the overall safety and durability of the ceiling assembly.
For contractors, project managers, architects, inspectors, and procurement teams, understanding ceiling grid quality inspection standards can reduce installation issues, prevent costly rework, and improve long-term performance. This guide explains the core inspection criteria, common testing methods, technical specifications, quality control checkpoints, and important terminology related to ceiling grid systems. It is designed as a practical, SEO-friendly resource for blogs, directory pages, and industry information pages.

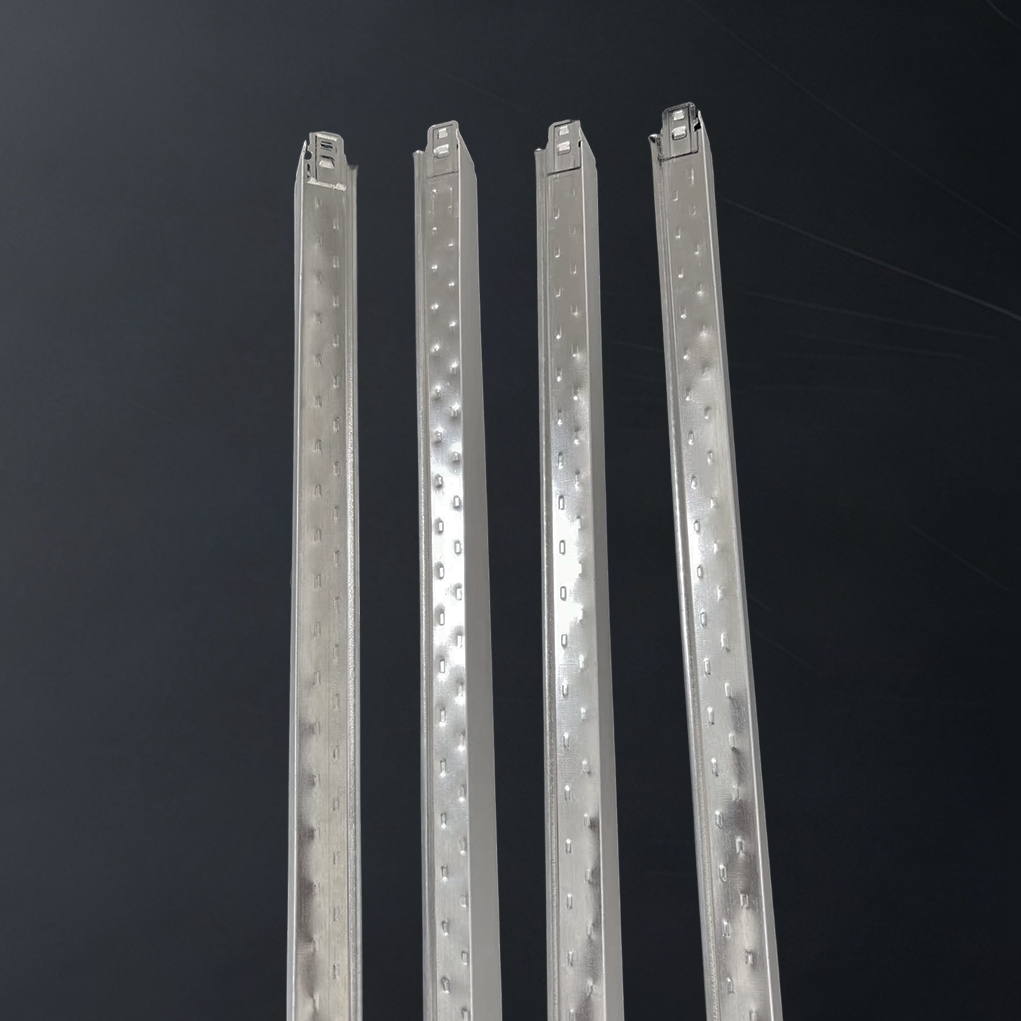

A ceiling grid is the framework used to support suspended ceiling tiles or panels. It typically includes Main Tees, Cross Tees, Wall Angles, hangers, and accessory components that work together to form a stable modular ceiling structure. Ceiling grid systems are widely used because they allow easy access to utilities above the ceiling, simplify maintenance, improve acoustics, and create a clean visual finish.
Ceiling grids are commonly manufactured from galvanized steel, aluminum, or other metal substrates depending on the application. The grid must maintain consistent dimensions and proper alignment so that tiles fit securely and the finished ceiling remains level and visually uniform. Because the ceiling grid is a structural support system, quality inspection is a necessary part of material acceptance and installation verification.
Quality inspection for ceiling grids is important for both performance and appearance. Even small manufacturing defects or installation errors can lead to sagging, misalignment, visible gaps, or tile instability. In commercial interiors, these issues can negatively affect safety, aesthetics, and maintenance efficiency.
There are several reasons why ceiling grid quality inspection standards are critical:
Ceiling grid inspection standards usually cover a combination of material quality, dimensional accuracy, surface condition, mechanical strength, and packaging condition. While specific project requirements may vary, the following criteria are commonly used in industry inspections.
The thickness of the metal used in the ceiling grid is one of the most important quality indicators. A grid that is too thin may deflect excessively or fail under load, while a grid with inconsistent thickness may produce uneven performance across the ceiling system. Inspectors typically verify that the product matches the specified gauge or thickness tolerance.
Dimensional consistency ensures that all components fit together correctly. Main tees, cross tees, and wall angles must be manufactured to precise lengths and connection profiles. If dimensions are off, installation becomes difficult and tile fit can be affected. Common checks include:
The surface finish has both protective and aesthetic value. Ceiling Grid Components are often coated to improve corrosion resistance and appearance. Inspectors should look for a smooth, consistent finish without peeling, blistering, flaking, staining, or exposed base metal. A poor finish can reduce product life and create visible defects in the finished ceiling.
Ceiling grid pieces must remain straight and flat to ensure a level ceiling plane. Warping, twisting, bowing, and bending are common defects that can compromise installation quality. Straightness is especially important for long main tees and cross tees, where even slight deformation may affect tile alignment.
The points where components connect must be secure and durable. Connection strength affects the overall stability of the ceiling grid. Inspectors may check for loose tabs, weak locking features, deformation at joints, or poor fit between mating parts. Strong, reliable connections help maintain the ceiling's structural integrity.
Depending on the project, the ceiling grid may need to support more than just tiles. Lights, diffusers, sprinklers, signage, and access panels may be integrated into the ceiling system. The grid should be able to carry the expected load without excessive deflection. Load-bearing testing or product certification is often required for higher-performance applications.
Ceiling grids are often used in environments where humidity, moisture, or temperature changes are present. Corrosion resistance is therefore a key quality factor. Galvanized coatings, protective paints, or special finishes may be used to improve resistance to rust. Inspection should confirm that coatings are continuous and that no exposed or damaged areas exist.
Even a well-manufactured ceiling grid can be damaged during transport or storage. Quality inspection should include package condition, product labeling, protective wrapping, stacking method, and evidence of dents or bending. Proper packaging helps preserve product quality until installation.
Ceiling grid quality inspection standards are typically applied through a combination of visual checks, measurement tools, sample testing, and documentation review. The following methods are commonly used in the field or in receiving inspections.
Visual inspection is the first and most basic method. It focuses on obvious defects such as scratches, rust spots, dents, poor coating, deformation, cracks, or unfinished ends. Visual inspection also checks whether the product appearance is consistent across the batch.
Measurement tools such as calipers, rulers, gauges, and templates are used to confirm product dimensions. This method verifies length, width, depth, slot spacing, and profile shape. Dimensional checks are essential for ensuring compatibility between all ceiling grid components.
Some projects require testing to determine how much load the ceiling grid can carry and how much it deflects under pressure. Deflection testing helps confirm that the system remains stable under expected operating conditions. This is especially important in large commercial installations.
When coatings are used for corrosion protection, coating thickness may be measured to verify consistency. Too little coating can reduce protection, while excessive coating may affect fit or appearance. Uniform coating thickness contributes to product performance and durability.
In procurement and receiving processes, inspectors may sample one or more pieces from a production lot to evaluate whether the batch meets specification. Sample lot verification helps identify quality issues before the material is approved for installation.
Inspection is not limited to physical examination. Technical data sheets, compliance certificates, test reports, and product identification labels should also be reviewed. Documentation helps confirm that the ceiling grid system matches the project specification.
The table below provides a general reference for common ceiling grid specification categories. Actual values may vary based on country, manufacturer, project type, and performance requirements.
| Specification Item | Typical Requirement | Inspection Focus | Why It Matters |
|---|---|---|---|
| Material | Galvanized steel or aluminum | Material type and consistency | Determines strength and corrosion resistance |
| Thickness | Project-specific gauge or mm value | Uniformity and tolerance | Affects load capacity and rigidity |
| Profile Dimensions | Standard modular ceiling profile | Width, depth, and length | Ensures proper tile fit |
| Surface Finish | Smooth coated or painted finish | Coverage, adhesion, and appearance | Improves durability and visual quality |
| Straightness | No visible bowing or twisting | Flatness and alignment | Supports a level ceiling plane |
| Connection Detail | Secure locking or slot connection | Fit and connection strength | Maintains structural stability |
| Corrosion Resistance | Suitable for indoor environment | Coating integrity | Extends service life |
| Packaging | Protected bundles or cartons | Damage prevention during transport | Preserves product quality before installation |
Quality tolerance refers to the acceptable variation allowed in product dimensions or performance. In ceiling grid systems, tolerances help define whether a component can still be considered compliant even if it is slightly different from the target measurement. Tolerance control is essential because ceiling grid systems depend on modular precision.
Important tolerance considerations include:
Tolerance levels may be defined by project documents, product standards, or internal quality specifications. When tolerance is too loose, the ceiling may appear uneven or be difficult to assemble. When tolerance is too strict without production control, costs may increase unnecessarily. The goal is to maintain practical, reliable consistency.
During inspection, several common defects may be identified. Knowing these defect types helps improve acceptance decisions and quality control procedures.
| Common Defect | Description | Impact on Performance |
|---|---|---|
| Bowing | Component curves away from a straight line | Causes alignment problems and uneven ceilings |
| Twisting | Component rotates out of its normal profile | Reduces fit accuracy and installation speed |
| Dents | Localized compression or impact damage | Weakens appearance and may affect structure |
| Coating Flaking | Surface finish peels away from the metal | Reduces corrosion resistance |
| Rust Spots | Visible oxidation on metal surfaces | Signals poor protection or storage damage |
| Loose Connections | Interlocking parts do not fit firmly | Compromises grid stability |
| Cut End Irregularity | Rough or uneven end cuts | Affects assembly precision and safety |
Applying consistent ceiling grid inspection standards delivers measurable benefits across the entire construction and finishing process. These benefits extend beyond quality control and influence budget, timeline, and client satisfaction.
When ceiling grid components are accurately made and properly inspected, installers can assemble the system more quickly and with fewer adjustments. This improves workflow and reduces labor time.
A properly inspected grid creates a smooth, level, and uniform ceiling plane. This is particularly important in offices, retail interiors, and public buildings where visual quality is a major priority.
High-quality materials and finishes help the ceiling grid resist deformation, corrosion, and wear. A durable grid reduces future maintenance needs and replacement costs.
Inspection lowers the risk of material rejection, installation delays, and warranty issues. It also helps identify nonconforming batches before they are installed.
Ceiling grid systems that meet dimensional standards are more compatible with ceiling tiles, light fixtures, HVAC accessories, and other ceiling-mounted elements.
Ceiling grid inspection standards are relevant across a wide range of building types. Different applications may place different levels of importance on appearance, durability, load performance, or environmental resistance.
The following checklist can be used as a practical reference for ceiling grid quality control. It helps standardize inspection and improve acceptance decisions.
| Inspection Item | Check Question | Status |
|---|---|---|
| Material Type | Does the product match the specified metal type? | Pass / Fail |
| Thickness | Is the thickness within acceptable limits? | Pass / Fail |
| Dimensions | Are all lengths and profiles correct? | Pass / Fail |
| Straightness | Is the component free from bowing or twisting? | Pass / Fail |
| Surface Finish | Is the coating smooth and continuous? | Pass / Fail |
| Connection Quality | Do the joints and connectors fit securely? | Pass / Fail |
| Corrosion Signs | Is there any visible rust or coating damage? | Pass / Fail |
| Packaging Condition | Are the materials protected from transport damage? | Pass / Fail |
To maintain reliable inspection results, organizations should follow a structured quality control process. Best practices include:
Understanding ceiling grid quality inspection standards also means understanding common technical language used in specification sheets and inspection reports.
| Term | Meaning |
|---|---|
| Main Tee | The primary structural member that carries the ceiling grid load |
| Cross Tee | A secondary member that connects to the main tee and forms the tile openings |
| Wall Angle | A perimeter support member fixed to the wall |
| Visible Face | The exposed surface seen from below after installation |
| Deflection | The amount a component bends under load |
| Gauge | A measure of metal thickness |
| Coating | A protective surface layer applied to the metal |
| Modular Layout | A uniform pattern designed for standard tile sizes |
For websites focused on construction materials, Suspended Ceiling Systems, or interior finishing products, ceiling grid quality inspection standards are a strong content topic because they attract users searching for technical details, compliance guidance, and product comparisons. SEO-friendly content on this topic can perform well when it includes relevant keyword phrases such as ceiling grid quality inspection, ceiling grid standards, Suspended Ceiling Grid specification, ceiling grid dimensions, ceiling grid testing, and ceiling grid quality control.
High-ranking industry content often includes clear definitions, tables, feature lists, inspection checklists, and practical terminology. Search engines also favor content that answers user intent directly. By providing detailed information on ceiling grid standards, benefits, defects, and specifications, a page can become more useful to readers and more competitive in search results.
Ceiling grid quality inspection standards play a vital role in the performance, durability, and appearance of suspended ceiling systems. From material thickness and dimensional accuracy to surface finish, connection strength, and packaging condition, every quality factor contributes to the success of the final installation. Proper inspection helps prevent common problems such as bowing, rust, misalignment, and poor tile fit while improving project efficiency and long-term reliability.
Whether you are creating an industry blog, a ceiling product category page, a technical resource, or a directory listing, this topic provides strong value because it addresses real-world concerns in commercial construction and interior finishing. By following structured inspection standards and clear quality control procedures, businesses and project teams can achieve more consistent results and better ceiling grid performance.
```
