Wall angle and ceiling grid installation requirements are essential topics in Suspended Ceiling Systems, acoustic ceiling construction, and commercial interior finishing.
Whether you are planning a new construction project, a renovation, or a large-scale commercial ceiling installation, understanding the correct wall angle and ceiling grid installation standards can improve alignment, structural support, long-term durability, and visual consistency.
This guide provides SEO-friendly, industry-focused, and original English content about wall angle and ceiling grid installation requirements. It includes definitions, advantages, common specifications, installation guidelines, system components, code-related considerations, and practical reference tables.
The content is written to support Google indexing and can be inserted directly into the middle of an HTML page for a blog, category page, product knowledge page, or industry landing page.
A wall angle is a perimeter support component used in suspended Ceiling Grid Systems. It is installed along the perimeter walls of a room and serves as the horizontal resting edge for the ceiling grid. In many ceiling systems, the wall angle provides a clean transition between the ceiling plane and the wall surface, helping define the ceiling boundary and support the main grid structure.
In commercial ceiling installation, wall angle is often made from galvanized steel, aluminum, or another corrosion-resistant metal. It is designed to work with standard ceiling grid systems, including exposed T-bar ceilings, acoustic tile ceilings, and Modular Suspended Ceiling assemblies. Correct wall angle installation is important because it establishes the ceiling perimeter level, supports tile edges, and helps maintain a stable and professional finish.
A ceiling grid system, also called a Suspended Ceiling Grid or T-bar grid system, is a framework of Main Runners, Cross Tees, perimeter angles, and hangers that supports ceiling panels or tiles. The grid is suspended below the structural ceiling and creates a concealed space above the finished ceiling plane for mechanical, electrical, plumbing, acoustic, and fire protection systems.
Ceiling grid systems are widely used in offices, schools, hospitals, retail spaces, airports, laboratories, and residential basements. The system is valued for its flexibility, access to utilities, sound control, and ease of maintenance. For the system to perform properly, every component must be installed according to the required spacing, alignment, and support standards.
Wall angle and ceiling grid installation requirements are not just technical details. They directly affect the strength, appearance, and safety of the ceiling assembly. When installation is done correctly, the ceiling remains level, the tiles fit properly, and the perimeter looks clean and professional. When installation is done poorly, the result may include uneven lines, tile movement, sagging, visible gaps, and long-term maintenance issues.
| Installation Factor | Importance | Impact on Ceiling Performance |
|---|---|---|
| Level perimeter layout | High | Ensures a straight and uniform ceiling edge |
| Proper wall angle fastening | High | Provides perimeter support and stability |
| Correct hanger spacing | High | Maintains structural suspension strength |
| Accurate grid alignment | High | Improves tile fit and ceiling appearance |
| Compliant material selection | Medium to High | Supports durability, corrosion resistance, and code compliance |
Proper wall angle and ceiling grid installation offers multiple functional and aesthetic advantages. These benefits apply to commercial ceiling systems, acoustic ceiling tiles, suspended ceiling panels, and modular interior environments.
A suspended ceiling grid system is composed of several interdependent parts. Understanding each component is important when reviewing wall angle and ceiling grid installation requirements.
| Component | Function | Typical Material |
|---|---|---|
| Wall angle | Supports the perimeter of the ceiling grid | Galvanized steel, aluminum |
| Main runner | Primary load-bearing member of the grid | Galvanized steel |
| Cross tee | Connects main runners and forms tile openings | Galvanized steel |
| Hanger wire | Suspends the grid from the structural ceiling | Steel wire |
| Ceiling tile or panel | Forms the visible ceiling surface | Mineral fiber, metal, gypsum, acoustic materials |
| Fasteners | Secure wall angle and supporting elements | Screws, anchors, clips |
Wall angle installation requirements may vary depending on ceiling type, local regulations, manufacturer guidelines, and project-specific conditions. However, several common industry practices are widely accepted in suspended ceiling installation.
The wall angle must be installed level around the entire room perimeter. A laser level or chalk line is typically used to establish the correct height. If the wall angle is not level, the ceiling grid will reflect the error, leading to visible slope or tile misalignment.
Wall angle should be fastened to a suitable wall substrate such as drywall, masonry, steel framing, or concrete. The type of fastener used depends on the wall material and project conditions. Proper anchoring is necessary to ensure the perimeter support remains stable over time.
Fastener spacing is an important installation requirement. In general, fasteners should be placed at regular intervals to hold the wall angle securely against the wall. More frequent fastening may be required at corners, irregular sections, or where the substrate is uneven.
In larger ceiling layouts or installations exposed to temperature changes, expansion allowances may be needed. This helps reduce stress in the perimeter system and prevents buckling or distortion.
Where wall angle sections meet, joints should be aligned neatly and installed according to standard overlap or butt-joint practices. Consistent joints improve appearance and help maintain a continuous support line.
In humid, coastal, or chemically aggressive environments, corrosion-resistant wall angle materials should be used. This helps protect the ceiling system from rust, degradation, and premature failure.
Ceiling grid installation requirements focus on proper layout, support, alignment, and load distribution. The suspended grid must be carefully planned before any tile or panel installation begins.
The first step in ceiling grid installation is accurate layout. The installer should determine the ceiling height, tile module dimensions, and perimeter conditions before fixing the grid members. Layout lines help ensure that the grid is centered and visually balanced in the room.
Hanger wires suspend the main runners from the structural ceiling. These wires must be installed at proper spacing and attached securely to approved structural members. Incorrect hanger wire spacing can cause sagging or reduce grid stability.
Main runners should be installed in straight lines and maintained at the correct elevation. The main runners carry the primary load of the ceiling grid and must be aligned carefully to create a uniform plane.

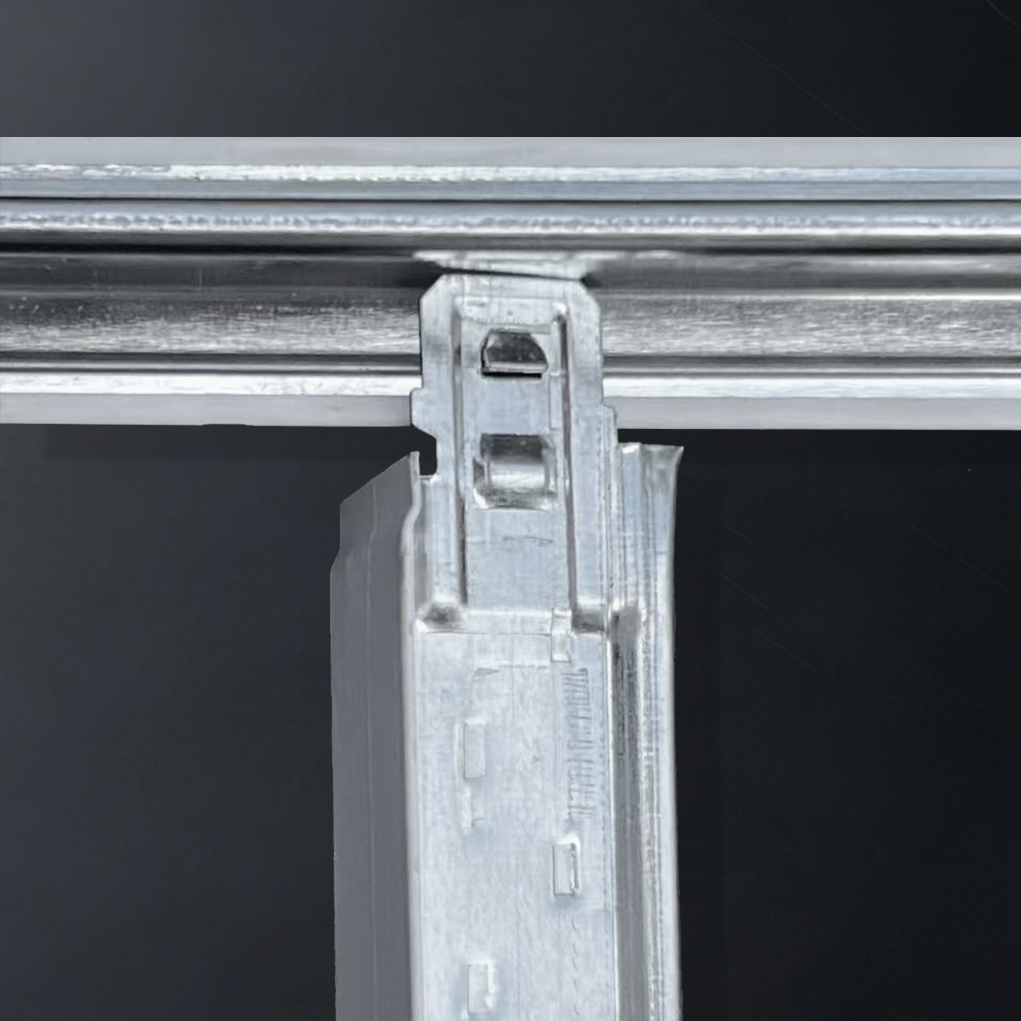

Cross tees must be inserted and locked into the main runners according to the system design. Proper connection ensures the grid openings are square and the ceiling tiles fit correctly.
A key installation requirement is ensuring that the grid is square. If the grid is not square, tiles may need to be cut unevenly, and the final appearance may be compromised.
The ceiling grid must not be overloaded. Any additional components such as light fixtures, diffusers, speakers, or access panels should be supported according to applicable requirements. The grid should only carry the loads for which it is designed.
The following sequence reflects a common industry approach to suspended ceiling installation. Exact procedures may vary by product type and project specifications, but this general workflow is widely used.
| Step | Action | Purpose |
|---|---|---|
| 1 | Measure the room and mark ceiling height | Defines the installation plane |
| 2 | Strike level lines around the perimeter | Ensures wall angle is installed evenly |
| 3 | Install wall angle around all walls | Creates the perimeter support |
| 4 | Mark main runner and cross tee layout | Sets the ceiling grid pattern |
| 5 | Install hanger wires and suspension points | Suspends the grid from the structure |
| 6 | Install main runners | Forms the primary grid framework |
| 7 | Insert cross tees | Creates tile openings and supports panels |
| 8 | Check alignment, level, and squareness | Confirms installation quality |
| 9 | Install ceiling tiles or panels | Completes the visible ceiling surface |
| 10 | Inspect perimeter edges and final finish | Ensures clean appearance and performance |
Wall angle dimensions may vary by ceiling system and region, but certain sizes are commonly used in the industry. The following table provides general reference information for wall angle profiles.
| Specification | Common Range | Notes |
|---|---|---|
| Material thickness | 0.4 mm to 0.8 mm | Varies based on system strength requirements |
| Leg size | 15 mm to 25 mm | Supports standard perimeter conditions |
| Length | 2.4 m, 3.0 m, or custom lengths | Depends on packaging and project needs |
| Finish | Plain, painted, galvanized, powder coated | Selected for appearance and corrosion resistance |
| Material | Steel or aluminum | Chosen according to environment and system type |
Ceiling grid systems are available in different module sizes and profile depths. Below is a general reference table for common suspended ceiling grid specifications used in commercial applications.
| Specification | Common Range | Application |
|---|---|---|
| Module size | 600 x 600 mm, 600 x 1200 mm, 24 x 24 in, 24 x 48 in | Standard ceiling tile formats |
| Main runner spacing | According to system design | Supports overall grid structure |
| Cross tee spacing | Aligned with tile dimensions | Forms individual ceiling openings |
| Suspension Wire spacing | Varies by code and system requirements | Provides vertical support |
| Grid profile depth | Shallow, standard, or heavy-duty | Selected based on load and design needs |
| Finish | White, black, galvanized, custom coatings | Matches interior design preferences |
Wall angle and ceiling grid installation requirements should be evaluated in the context of the entire building environment. Several factors can affect the final result.
Large rooms, narrow corridors, irregular corners, and L-shaped spaces may require special layout planning. The wall angle and grid pattern should be adapted to minimize awkward tile cuts and maintain visual symmetry.
The structural ceiling must provide reliable suspension points for hanger wires. Installers should verify the condition of the deck, joists, or framing before hanging the grid.
Ductwork, piping, lighting, sprinkler heads, and cable trays may affect hanger placement and grid height. Coordination with other building trades is essential for efficient suspended ceiling installation.
In many applications, ceiling assemblies must comply with fire safety requirements, plenum access rules, and local building codes. Material selection and installation methods should support the intended fire-rated or non-rated ceiling design.
In offices, classrooms, and healthcare environments, acoustic performance is a major consideration. Properly installed ceiling grids help support acoustic panels and reduce sound transmission between spaces.
Even when using standard materials, installation errors can reduce performance and appearance. The following issues are commonly associated with poor wall angle and ceiling grid installation.
Standardized ceiling grid installation practices make projects more efficient and predictable. Contractors, designers, and facility managers benefit from repeatable installation methods that improve quality and reduce rework.
| Advantage | Description | Project Value |
|---|---|---|
| Consistency | Uniform grid layout across multiple rooms | Improves appearance and simplifies maintenance |
| Efficiency | Faster installation with fewer adjustments | Reduces labor time and project delays |
| Maintainability | Easier access to hidden utilities | Supports long-term building operations |
| Adaptability | Compatible with different panel types and layouts | Useful for varied commercial environments |
| Cost control | Reduced errors and material waste | Helps manage overall installation budgets |
A professional suspended ceiling installation should include quality checks before project completion. These checks help verify that the wall angle and ceiling grid meet the expected installation standards.
| Quality Check | What to Verify | Expected Result |
|---|---|---|
| Perimeter level | Wall angle height around the room | Uniform and straight perimeter line |
| Grid alignment | Main runners and cross tees | Square and consistent ceiling openings |
| Fastener security | Anchors and screws on the wall angle | Firm attachment to substrate |
| Hanger stability | Suspension wires and attachment points | Proper support and no visible movement |
| Tile fit | Panel placement and edge condition | Clean fit without excessive gaps |
Wall angle and ceiling grid installation requirements can vary depending on the type of building or space. While the core principles remain the same, different environments place different demands on the system.
Office environments usually require clean finishes, easy access to services, and acoustic control. Ceiling grid systems in offices are often installed with standard modular layouts for flexibility and maintenance access.
In classrooms and education spaces, suspended ceilings are commonly used to improve sound absorption and conceal building systems. The wall angle and grid should be installed to support safe, durable, and easy-to-maintain ceiling panels.
Healthcare projects often need cleanable materials, precise installation, and compatibility with specialized ceiling components. Grid alignment and perimeter integrity are especially important in these environments.
Retail spaces benefit from visually clean grid lines and the ability to integrate lighting and display elements. Installation requirements should support both appearance and functional access.
Some industrial areas use suspended ceilings for service access and environmental separation. In these cases, material durability and corrosion resistance become especially important.
For SEO purposes, wall angle and ceiling grid installation content often includes high-intent industry terms. These terms can help improve relevance for search engines when used naturally throughout the page.
If you are creating a blog article, directory page, or industry landing page about wall angle and ceiling grid installation requirements, it helps to structure the content for both readers and search engines. Use clear headings, descriptive tables, concise definitions, and naturally repeated keywords. Avoid keyword stuffing, but maintain semantic relevance throughout the text.
Strong SEO structure for this topic often includes a focused H1 title, multiple H2 and H3 sections, internal keyword relevance, and supporting tables that clarify technical specifications. This approach makes the content more useful for readers while increasing the chance that search engines can interpret the page topic accurately.
Wall angle and ceiling grid installation requirements are fundamental to successful suspended ceiling construction. From perimeter support and grid alignment to hanger spacing and tile fit, every detail influences the final performance of the ceiling system. A properly installed wall angle creates a strong boundary, while a correctly installed ceiling grid supports the full ceiling assembly with stability, accuracy, and visual consistency.
For architects, contractors, builders, facility managers, and interior fit-out professionals, understanding wall angle and ceiling grid installation requirements is an important part of delivering high-quality ceiling systems. By following established installation practices, using suitable materials, and verifying layout and alignment at every stage, a project can achieve better durability, cleaner appearance, and improved long-term value.
```
