Product Vid
Product Overview

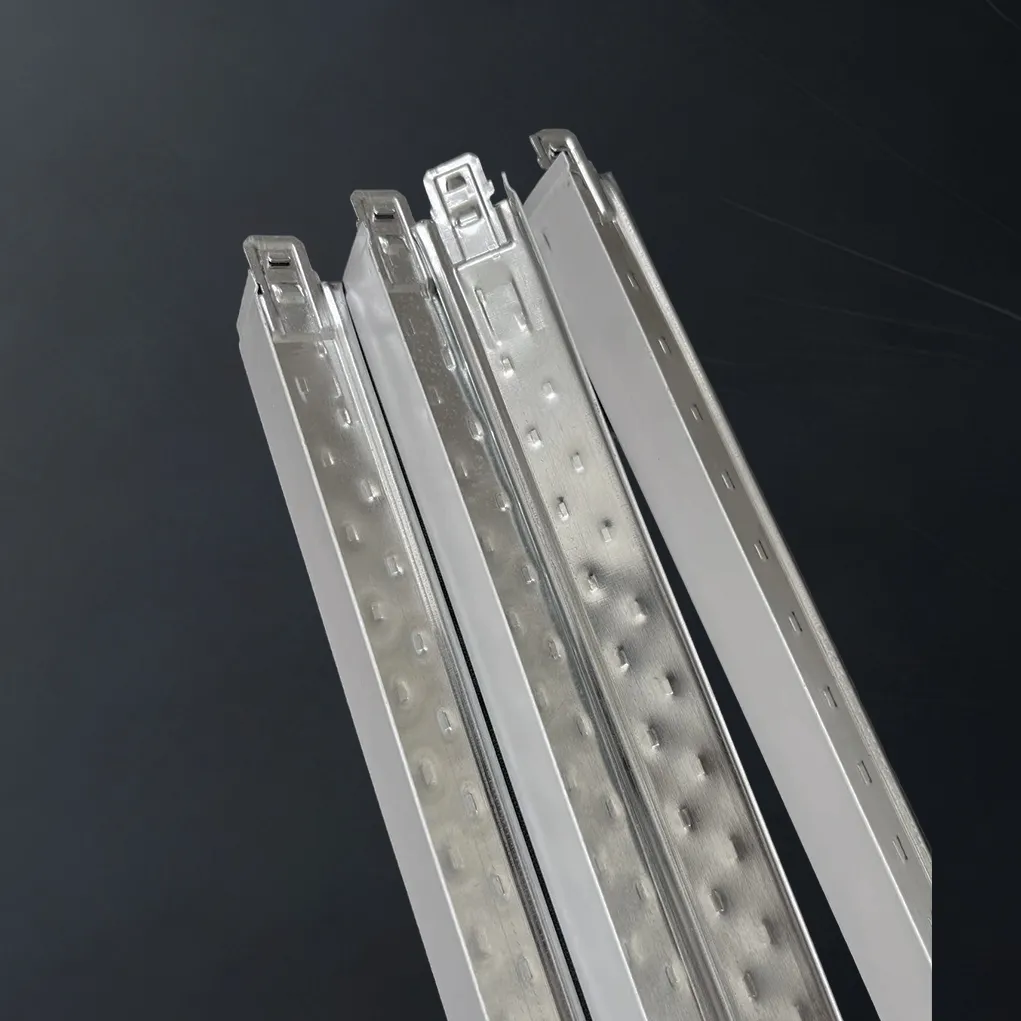

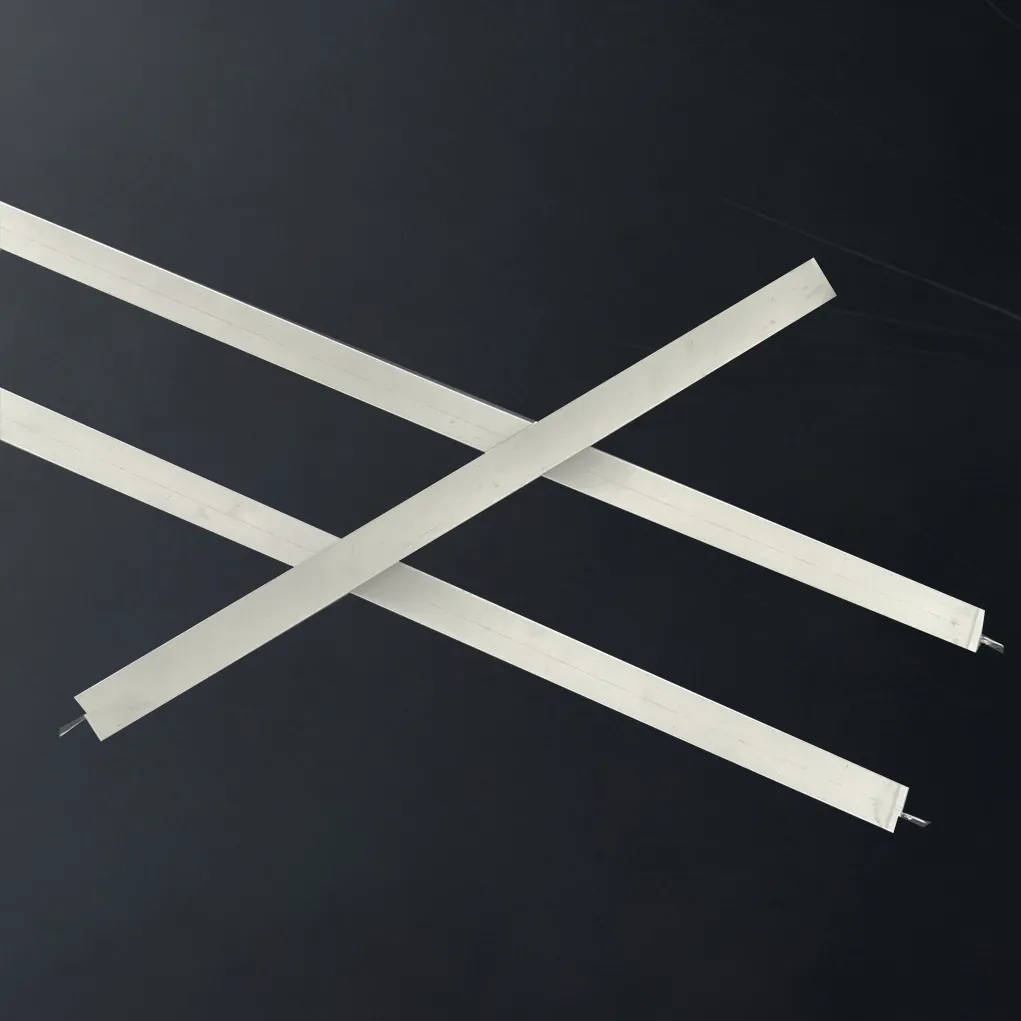

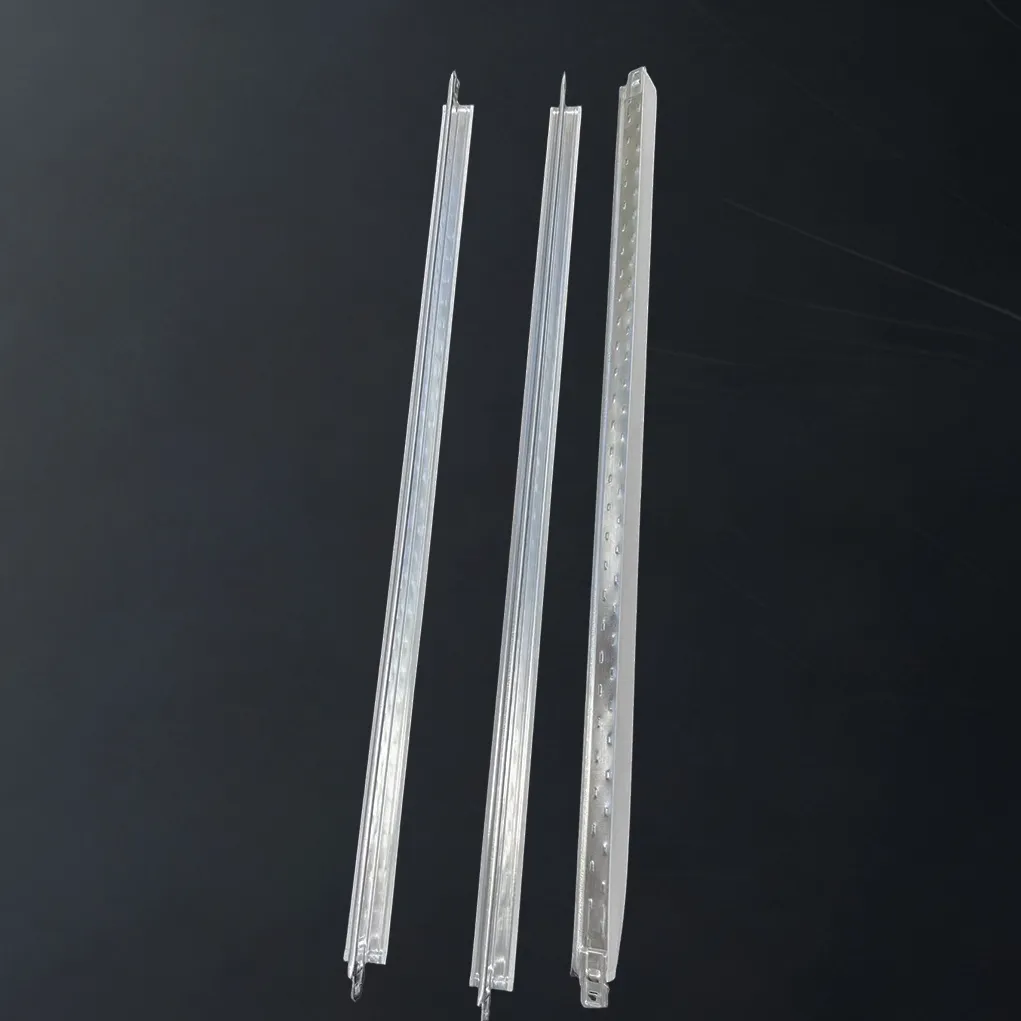

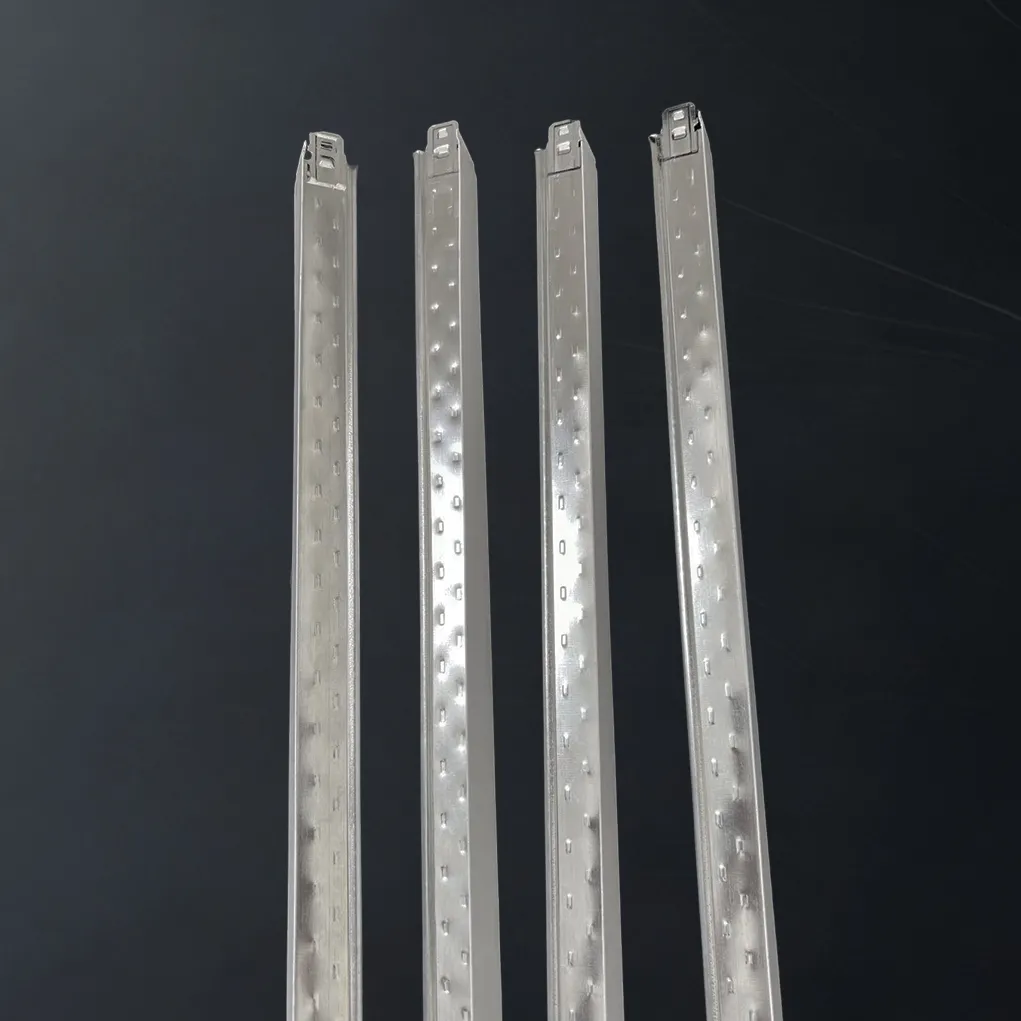

Painted ceiling keel is a galvanized steel metal ceiling support frame, processed by rolling, punching and surface baking finish. It forms a complete Modular Ceiling System with all matching accessories, compatible with Mineral wool boards, gypsum boards and various indoor ceiling panels, complying with ASTM C635 industry load-bearing standards.
System Composition
The system includes load-bearing main keel, grid-forming cross keel, wall edge corner keel, Suspension Wires, hanging rods and all installation matching fasteners, covering full set of ceiling installation components.
Product Features
Adopts high-quality galvanized steel base with stable structure and anti-rust performance. Baked paint surface is smooth and color uniform with T-shaped stable structure. Plug-in assembly design enables quick installation, lightweight body easy for handling, with multiple colors and surface styles for customized matching.
Product Advantages
Modular plug-in structure greatly improves construction efficiency. Precise size ensures ceiling flatness. Exposed painted surface needs no secondary decoration. Modular design facilitates later maintenance, suitable for most commercial and public indoor spaces with flexible customizable specifications.
Product Specifications
Fire resistance | Class A materials, with excellent fire resistance. |
Installation type | Pause, lie down, put down |
Ceiling tile types | Calcium silicate ceiling |
Function/Effect | Fireproof, heat-insulating, moisture-proof, and mildew-proof |
The shape of ceiling tiles | rectangle |
Project solution capabilities | Graphic design, 3D modeling, and other fields |
Warranty period | 1 year |
Brand Name | WLX |
Material | Mineral wool fiberboard |
How to use | Interior decoration materials |
Keywords | Fireproof materials |
size | Custom sizes |
thickness | 5/5.5/6/7/7.5/8/9/9.5/10/12/15 |
app | Hotels, villas, apartments, office buildings, hospitals, workshops, shopping centers |
Sound blocking (cac) | 39, 40 |
Special features | tistic ceilings, honeycomb ceilings, integrated ceilings |
Design Style | contemporary |
Install | Upper limit grid |
After-sales service | Online technical support, on-site installation service, free spare parts supply and other services |
country of origin | Hebei Province, China |
Product Name | Ceiling decorative panels |
type | Modern wall panels |
surface | Smooth film |
| color | White |
name | PVC plastic ceiling panels |
Length | 3600MM，600MM，1200MM，3660MM，1220MM,610MM |
Installation Method | Easy quick insertion |
Frequently Asked Questions
1. What is Paint-baked keel?
Paint baked keel is a metal ceiling keel with a painted decorative surface, mainly used to support modular ceiling panels.
2. What components are included?
A complete system typically includes a main keel, cross brace keel, corner keel, suspension wire, suspension rod, and connecting accessories.
3. What material is Paint-baked keel made of?
The product usually uses galvanized steel strip as the substrate and is painted or otherwise decorated on the visible surface.
4. What ceiling panels can it support?
It can be matched with mineral wool sound-absorbing panels, embedded gypsum boards, PVC veneer panels, calcium silicate boards, and other size matching ceiling panels.
5. Is Paint-baked keel rustproof?
Galvanized substrates and baked paint surfaces can improve the anti-corrosion ability of products, but cannot be advertised as completely rust free in all environments.
